OpenC3 COSMOS Architecture

COSMOS Core Architecture​

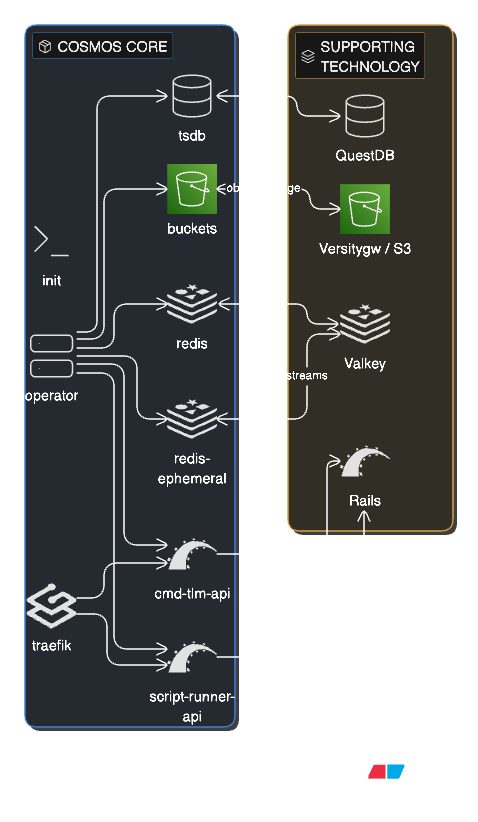

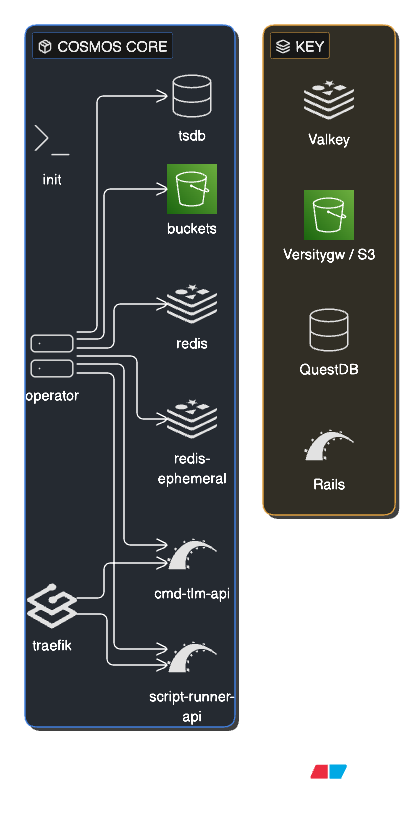

COSMOS Core Architecture

COSMOS Core is a cloud native, containerized, microservice oriented command and control system deployed with Docker Compose. The init container seeds the initial configuration and plugin data into the system on startup. The operator manages the lifecycle of all COSMOS microservices including interfaces that connect to external embedded systems (Targets). Two Rails-based APIs power the system: cmd-tlm-api provides the REST API for command and telemetry operations, while script-runner-api handles script execution. The traefik reverse proxy routes all user browser traffic to the appropriate API. Two Valkey (Redis) data stores are used: redis holds persistent configuration and the current value table, while redis-ephemeral handles real-time data streams. The buckets service provides S3-compatible object storage (powered by Versitygw) for plugins, targets, configuration data, text logs, and binary logs of all raw data. The time-series database (tsdb), powered by QuestDB, stores all decommutated command and telemetry data for fast historical queries.

When you install a plugin, the microservices for its targets and interfaces all run inside the operator container. The operator starts each microservice as a separate process and restarts it if it dies. Each interface and router gets its own process, which uses threads to read telemetry and send commands at the same time. A target's decommutation, logging, and TSDB microservices are grouped into a single process by default, each running as a thread. You can split them into separate processes with TARGET_MICROSERVICE.

COSMOS Enterprise Architecture​

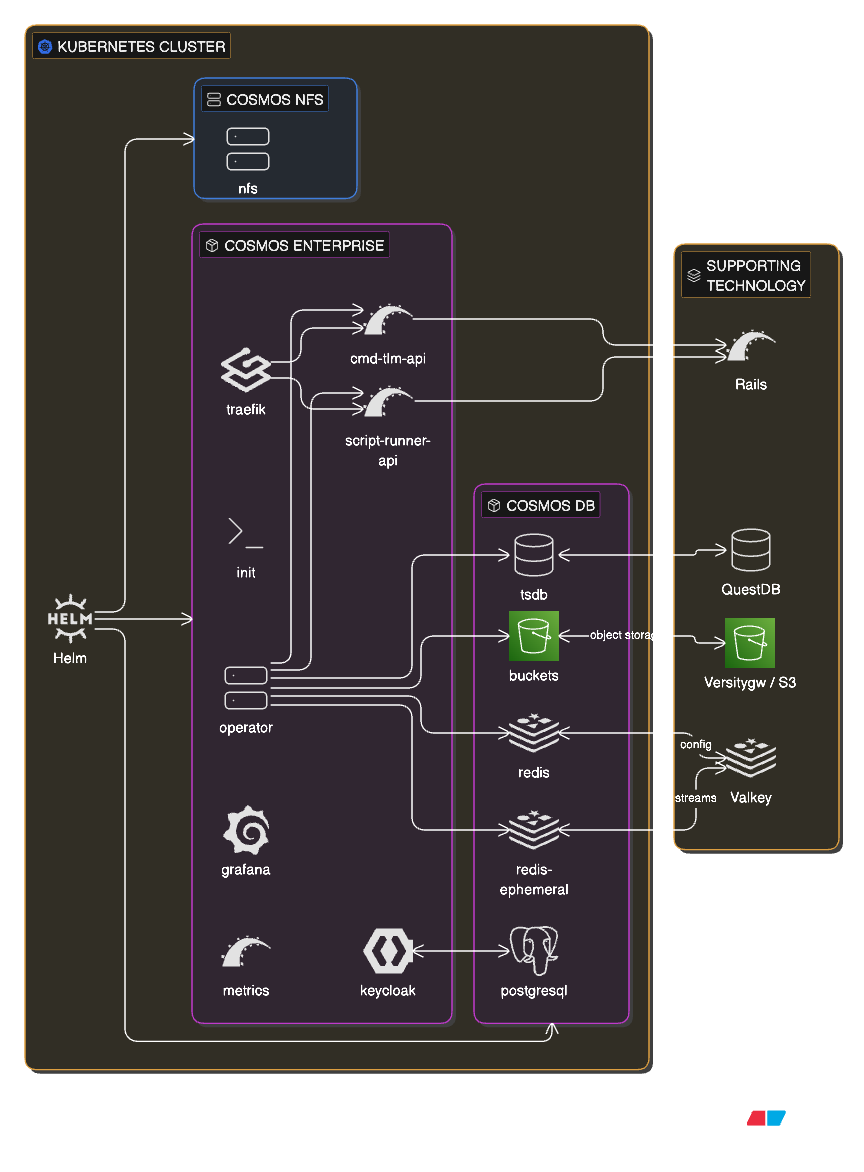

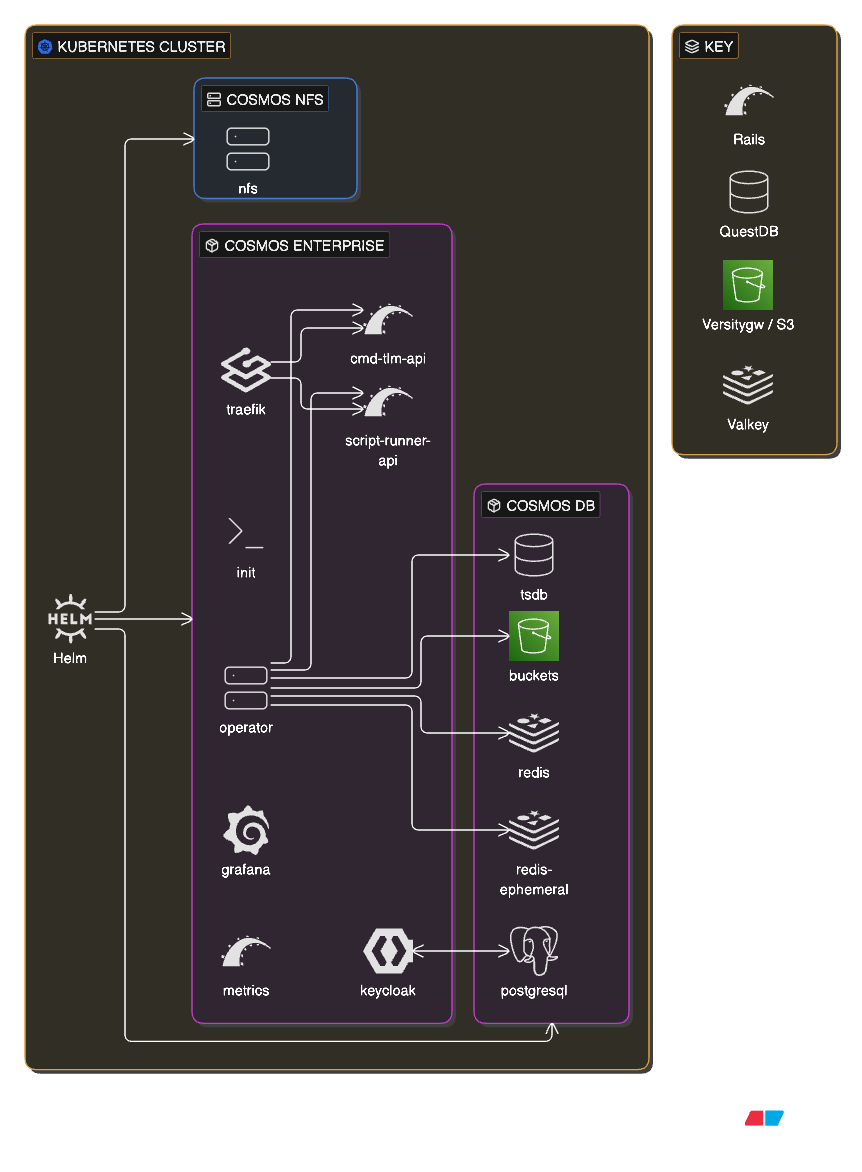

COSMOS Enterprise Architecture

COSMOS Enterprise extends Core with additional services and is optionally deployed on a Kubernetes cluster using Helm charts as shown above. The core services (cmd-tlm-api, script-runner-api, traefik, init, operator) remain the same and are deployed by the openc3 chart. Data services (tsdb, buckets, redis, redis-ephemeral) are deployed by a separate openc3-db chart. Enterprise adds Keycloak for full identity and access management with role-based permissions, backed by a PostgreSQL database. A Grafana instance and metrics collector provide system monitoring and observability dashboards. The COSMOS NFS chart provides shared network file storage across the cluster.

In Kubernetes, the Helm operator.shards value chooses how plugin microservices run. Most deployments should use the default of 0.

  • shards: 0 (default): A single operator uses the Kubernetes API to deploy microservices automatically. It doesn't run plugin microservices itself. Instead it creates a separate Kubernetes Deployment, and therefore a separate pod, for each interface, router, target, and plugin microservice. It also creates a Kubernetes Service for any microservice that exposes ports. Each pod uses the openc3-enterprise-gem image by default, or the plugin's own image if one is set with CONTAINER. Running each microservice in its own pod means Kubernetes can schedule them across nodes and set CPU and memory limits for each one.
  • shards: N: Use this only if COSMOS can't have access to the Kubernetes API, for example when your cluster policy doesn't allow COSMOS to create Deployments. The operator is deployed as a StatefulSet of N pods, operator-0 through operator-(N-1). Each operator pod runs the microservices assigned to its shard as processes, the same way the Core operator does. Assign a target's microservices to an operator with the target's SHARD, and an interface, router, or microservice with its own SHARD. Anything without a SHARD runs on operator-0.

Either way, interfaces connect to targets outside the cluster. When COSMOS Enterprise runs with Docker Compose instead of Kubernetes, the operator runs microservices as processes, the same as Core.

The data stores can be sharded separately from the operator. The tsdb, redis, and redis-ephemeral StatefulSets in the openc3-db chart each run one instance per database shard (set by their replicas values). Use the target's DB_SHARD to choose which database shard holds a target's packet definitions, current values, data streams, and time-series data. Everything else, including system configuration, stays on database shard 0. Buckets and PostgreSQL are not sharded.

All services are orchestrated by Kubernetes, enabling horizontal scaling, high availability, and production-grade deployment.

Terminology​

TermDefinition
TargetA COSMOS target is an embedded system that the COSMOS Command and Telemetry Server connects to using an interface in order to send commands to and/or receive telemetry from.
CommandA packet of information telling a target to perform an action of some sort.
TelemetryA packet of information providing status from a target.
InterfaceA physical connection to a target that sends commands to and/or receives telemetry from a target. COSMOS comes with interfaces that support TCP/IP, UDP, and serial connections. Custom interfaces are easy to add to the system.
Configuration FilesCOSMOS uses simple plain text configuration files to define commands and telemetry packets, and to configure each COSMOS application. These files are easily human readable/editable and machine readable/editable.
ToolAnother name for a COSMOS application.

Key aspects of this architecture:

  • COSMOS can connect to many different kinds of targets. The examples include things like Flight software (FSW), Ground Support Equipment (GSE), Labview, and COTS targets such as an Agilent power supply. Any embedded system that provides a communication interface can be connected to COSMOS. The flexibility of interfaces, protocols, and accessors mean we adapt to your hardware, not the other way around!
  • All realtime communication with targets flows through the COSMOS system. This ensures all commands and telemetry are logged.
  • Every tool is configured with plain text configuration files.
  • Program specific tools can be written using the COSMOS libraries that can interact with the realtime command and telemetry streams and can process logged data.

Projects​

The main COSMOS repo contains all the source code used to build and run COSMOS. However, users (not developers) of COSMOS should use the COSMOS project to launch COSMOS. The project consists of the openc3.sh and openc3.bat files for starting and stopping COSMOS, the compose.yaml for configuring the COSMOS containers, and the .env file for setting runtime variables. Additionally, the COSMOS project contains user modifiable config files for both Redis and Traefik.

Containerization​

Images​

Per Docker, "An image is a read-only template with instructions for creating a Docker container." The base operating system COSMOS uses is Debian (the trixie-slim image), with Red Hat UBI minimal images available as an alternative. These are small images with a full package system that allows us to install our dependencies. Starting with the base OS image, we create a Dockerfile to add Ruby and Python and a few other packages to create our own docker image. We further build upon that image to create a NodeJS image to support our frontend and additional images to support our backend.

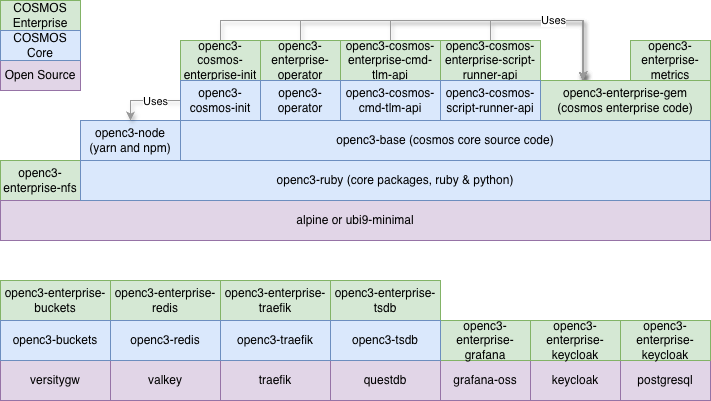

The following diagram shows all the COSMOS Core and Enterprise container images. Images are built from the bottom up in the Dockerfile using FROM. Images referenced with "Uses" are used during the build stage.

COSMOS Images

Containers​

Per Docker, "a container is a standard unit of software that packages up code and all its dependencies so the application runs quickly and reliably from one computing environment to another." Also per Docker, "A container is an isolated environment for your code. This means that a container has no knowledge of your operating system, or your files. It runs on the environment provided to you by Docker Desktop. Containers have everything that your code needs in order to run, down to a base operating system." COSMOS utilizes containers to provide a consistent runtime environment. Containers make it easy to deploy to local on-prem servers, cloud environments, or air-gapped networks.

The COSMOS Core containers consist of the following:

NameDescription
cosmos-openc3-cosmos-init-1Run migrations, installs the COSMOS tools, and then exits
cosmos-openc3-operator-1Main COSMOS container that runs the interfaces and target microservices
cosmos-openc3-traefik-1Provides a reverse proxy and load balancer with routes to the COSMOS endpoints
cosmos-openc3-cosmos-cmd-tlm-api-1Rails server that provides all the COSMOS API endpoints
cosmos-openc3-cosmos-script-runner-api-1Rails server that provides the Script API endpoints
cosmos-openc3-buckets-1Provides a S3 like bucket storage interface and also serves as a static webserver for the tool files
cosmos-openc3-redis-1Serves the static target configuration and Current Value Table
cosmos-openc3-redis-ephemeral-1Serves the streams containing the raw and decomutated data
cosmos-openc3-tsdb-1QuestDB time-series database for long-term storage of decommutated data

The container list for COSMOS Enterprise consists of the following:

NameDescription
cosmos-enterprise-openc3-grafana-1Grafana container preconfigured with the COSMOS Data Source
cosmos-enterprise-openc3-metrics-1Rails server that provides metrics on COSMOS performance
cosmos-enterprise-openc3-keycloak-1Single-Sign On service for authentication
cosmos-enterprise-openc3-postgresql-1SQL Database for use by Keycloak
openc3-nfs *Network File System pod only for use in Kubernetes to share code libraries between containers

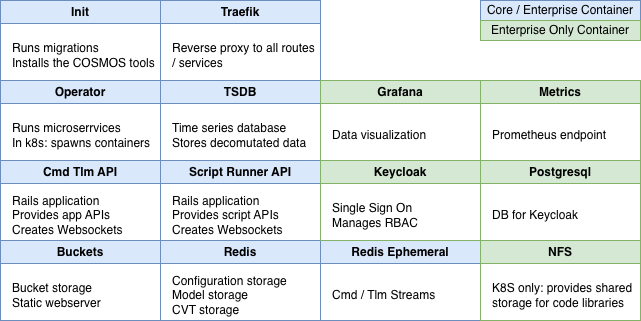

A diagram of the running containers is shown below:

COSMOS Containers

Docker Compose​

Per Docker, "Compose is a tool for defining and running multi-container Docker applications. With Compose, you use a YAML file to configure your application's services. Then, with a single command, you create and start all the services from your configuration." OpenC3 uses compose files to both build and run COSMOS. The compose.yaml is where ports are exposed and environment variables are used.

Environment File​

COSMOS uses an environment file along with Docker Compose to pass environment variables into the COSMOS runtime. This .env file consists of simple key value pairs that contain the version of COSMOS deployed, usernames and passwords, and much more.

Kubernetes​

Per Kubernetes.io, "Kubernetes, also known as K8s, is an open-source system for automating deployment, scaling, and management of containerized applications. It groups containers that make up an application into logical units for easy management and discovery." COSMOS Enterprise provides Helm charts for easy deployment to Kubernetes in various cloud environments.

COSMOS Enterprise also provides configuration to deploy COSMOS infrastructure on various cloud environments (e.g. CloudFormation template on AWS).

Frontend​

Vue.js​

The COSMOS frontend is fully browser native and is implemented in the Vue.js framework. Per Vue.js, "Vue is a JavaScript framework for building user interfaces. It builds on top of standard HTML, CSS, and JavaScript and provides a declarative and component-based programming model that helps you efficiently develop user interfaces, be they simple or complex." COSMOS utilizes Vue.js and the Vuetify Component Framework UI library to build all the COSMOS tools which run in the browser of your choice. COSMOS 5 utilized Vue.js 2.x and Vuetify 2.x while COSMOS 6 utilizes Vue.js 3.x and Vuetify 3.x.

Single-Spa​

While COSMOS itself is written in Vue.js, we utilize a technology called single-spa to allow COSMOS developers to create applications in any javascript framework they choose. Single-spa is a micro frontend framework and acts as a top level router to render the application being requested. COSMOS provides a Vue.js tool generator ready to plug into single-spa. Older Angular, React, and Svelte templates are archived in the tool_templates repo.

Astro UX​

Per AstroUXDS, "The Astro Space UX Design System enables developers and designers to build rich space app experiences with established interaction patterns and best practices." COSMOS utilizes the Astro design guidelines for color, typograpy, and iconograpy. In some cases, e.g. Astro Clock, COSMOS directly incorporates Astro components.

Backend​

Valkey​

Valkey is an in-memory data store with support for strings, hashes, lists, sets, sorted sets, streams, and more. COSMOS uses Valkey to store both our configuration and data. If you look back at our container list you'll notice two valkey containers: cosmos-openc3-redis-1 and cosmos-openc3-redis-ephemeral-1 (still named Redis after the original). The ephemeral container contains all the real-time data pushed into streams. The other container contains COSMOS configuration that is meant to persist. COSMOS Enterprise provides helm charts that setup Valkey to perform horizontal scaling where data is shared across multiple nodes.

Versitygw​

Versitygw is a high-performance, S3 compatible object store. COSMOS uses this storage technology to host both the COSMOS tools themselves and the long term log files. COSMOS Enterprise deployed in a cloud environment uses the available cloud native bucket storage technology, e.g. AWS S3, GCP Buckets, and Azure Blob Storage. Using bucket storage allows COSMOS to directly serve the tools as a static website and thus we don't need to deploy Tomcat or Nginx for example.

Ruby on Rails​

The COSMOS API and Script Runner backends are powered by Ruby on Rails. Rails is a web application development framework written in the Ruby programming language. Rails (and our familiarity with Ruby) allows us to write less code while accomplishing more than many other languages and frameworks.

QuestDB​

COSMOS uses QuestDB as its time-series database (TSDB) for long-term telemetry storage. This includes storage of all the COSMOS telemetry types: RAW, CONVERTED, and FORMATTED. COSMOS still stores the raw packet data as binary files in the object storage (versitygw or cloud native). The storage of raw binary files can be controlled by the CMD_LOG_RETAIN_TIME and TLM_LOG_RETAIN_TIME. QuestDB is a high-performance database optimized for time-series data, offering fast ingestion rates and efficient querying of large datasets. Data is ingested into QuestDB with QWP, QuestDB's binary wire protocol over WebSocket. The COSMOS QuestDB image enables QuestDB's adaptive commit mode, which flushes each commit's write-ahead log to disk before acknowledging it, so a power loss can't corrupt tables. A power loss can still lose acknowledged data that QuestDB hasn't yet recorded in its transaction log, which it normally does within 50 ms (the group-commit window) but can take longer under heavy load or on slow storage.

While Valkey stores real-time streaming data and the current value table, QuestDB provides persistent storage for historical telemetry. This enables users to query telemetry data over extended time periods using standard SQL syntax. Each telemetry and command packet gets its own QuestDB table using the naming convention SCOPE__TLM__TARGET__PACKET or SCOPE__CMD__TARGET__PACKET. Note that all COSMOS tools using the Streaming API including Command History, Data Extractor, Data Viewer, Telemetry Grapher, Grafana all now use QuestDB to pull engineering data.

Data Type Mapping​

COSMOS maps its data types to QuestDB column types as follows:

COSMOS TypeBit SizeQuestDB TypeNotes
INT< 32intSmall signed integers and bitfields
INT32longPromoted to long (QuestDB uses int MIN as NULL)
INT64DECIMAL(20, 0)Full 64-bit signed range
UINT< 32intFits in signed int
UINT32longNeeds 33 bits for full unsigned range
UINT64DECIMAL(20, 0)Full 64-bit unsigned range
FLOAT32floatIEEE 754 single precision
FLOAT64doubleIEEE 754 double precision
STRINGvarvarcharVariable-length text
BLOCKvarvarcharBase64-encoded binary
ARRAYvarvarcharJSON-serialized arrays
DERIVEDvarvariesBased on converted_type/bit_size; defaults to varchar

Special Float Value Handling​

QuestDB does not support IEEE 754 special values directly. The following sentinel values are used:

Special Value64-bit (double) Sentinel32-bit (float) Sentinel
Infinity1.7976931348623155e+308 (near DBL_MAX)3.4028233e+38 (near FLT_MAX)
-Infinity-1.7976931348623155e+308 (near -DBL_MAX)-3.4028233e+38 (near -FLT_MAX)
NaN-1.7976931348623153e+308 (negative, near -DBL_MAX)-3.4028231e+38 (negative, near -FLT_MAX)

These sentinels allow special float values to be stored and retrieved without data loss.

Other Limitations​

  • Integer MIN_VALUE is used as NULL sentinel in QuestDB
  • Arrays are always stored as JSON-serialized strings for consistency
  • 64-bit integer values are sent as strings; QuestDB casts them to DECIMAL

Packet Structure Changes​

QuestDB table schemas are reconciled against the current packet definitions each time the tsdb microservice starts (plugin install or COSMOS restart). New items become new columns, changed item types become ALTER COLUMN ... TYPE statements, and removed items leave their existing column in place. Some type changes silently NULL existing values. See Packet Structure Changes for the full behavior and the recommended workflow.

Historical Data Migration​

COSMOS provides a migration plugin for ingesting historical decommutated telemetry and command data from binary log files into QuestDB. The plugin reads COSMOS binary packet log files (.bin and .bin.gz) from S3-compatible storage and batch-ingests the data into QuestDB. It processes files in reverse chronological order (newest first) and rate-limits ingestion to avoid overwhelming operational systems.

QuestDB tables are partitioned by day, so individual partitions can be detached for long-term archival and reattached later. See Removing and Restoring Partitions in the Backups guide for the workflow.

Keycloak (Enterprise)​

COSMOS Enterprise uses Keycloak as its Single Sign-On (SSO) solution. Keycloak is an open-source Identity and Access Management system that provides authentication, authorization, and user federation capabilities. Keycloak implements the OAuth 2.0 and OpenID Connect protocols and issues several types of tokens to manage user sessions.

Access Token​

The access token is a short-lived JSON Web Token (JWT) used to authenticate API requests. It is included in the Authorization: Bearer <token> header of HTTP requests and contains user identity and permissions (claims). When an access token expires, the client must obtain a new one using a refresh token. COSMOS Enterprise default: 5 minutes.

Refresh Token​

The refresh token is a longer-lived token used solely to obtain new access tokens. It is never sent to resource servers—only to Keycloak's token endpoint. Each refresh request typically returns a new refresh token (token rotation). The refresh token expires after a period of inactivity (SSO Session Idle) or after a maximum lifespan (SSO Session Max), at which point the user must re-authenticate. COSMOS Enterprise defaults: 30 minutes idle timeout, 10 hours max lifespan.

Offline Access Token​

The offline access token is a special type of refresh token designed for long-lived sessions lasting days, weeks, or indefinitely. It is obtained by requesting the offline_access scope during authentication. Unlike regular refresh tokens, offline access tokens survive Keycloak server restarts and user session logouts. They are useful for automated scripts or services that need persistent access without user interaction. Offline tokens have separate configuration settings: "Offline Session Idle" and "Offline Session Max". COSMOS Enterprise defaults: 30 days idle timeout, max lifespan not enforced (tokens can last indefinitely if used regularly).

Token Lifecycle​

The typical token lifecycle works as follows:

  1. User authenticates with Keycloak and receives an access token and refresh token
  2. Client uses the access token for API calls
  3. Access token expires and client sends the refresh token to Keycloak
  4. Keycloak issues a new access token and new refresh token
  5. Steps 2-4 repeat until the refresh token expires or the user logs out

For examples of using these tokens with curl see Testing with Curl.

Automatic Token Refresh​

COSMOS Enterprise automatically refreshes tokens to maintain user sessions. Every 60 seconds, the application checks if the access token will expire within the next 2 minutes. If so, it sends the current refresh token to Keycloak's token endpoint and receives both a new access token and a new refresh token.

With the default 5-minute access token lifespan, this results in token refreshes approximately every 3-4 minutes. Each refresh resets the refresh token's idle timeout, keeping the session alive as long as the user has the application open.

Important notes on idle timeout behavior:

  • The refresh token idle timeout is only reset when the application communicates with Keycloak (i.e., during token refresh)
  • Making API calls using the access token does not reset the refresh token idle timeout, because those requests never reach Keycloak
  • If a user closes the browser for longer than the idle timeout (default 30 minutes), they must re-authenticate

Default Token Lifespans​

Token TypeSettingKeycloak SettingDefault Value
Access TokenLifespanAccess Token Lifespan5 minutes
Refresh TokenIdle TimeoutSSO Session Idle30 minutes
Refresh TokenMax LifespanSSO Session Max10 hours
Offline TokenIdle TimeoutOffline Session Idle30 days
Offline TokenMax LifespanOffline Session MaxNot enforced

To change these values, for example to keep users logged in longer, see Session Length and Automatic Logout.
