SSL-TLS

OpenC3 COSMOS is a container based service which does not use SSL/TLS out of the box. This guide will help you configure SSL and TLS. Learn more at the Traefik docs.

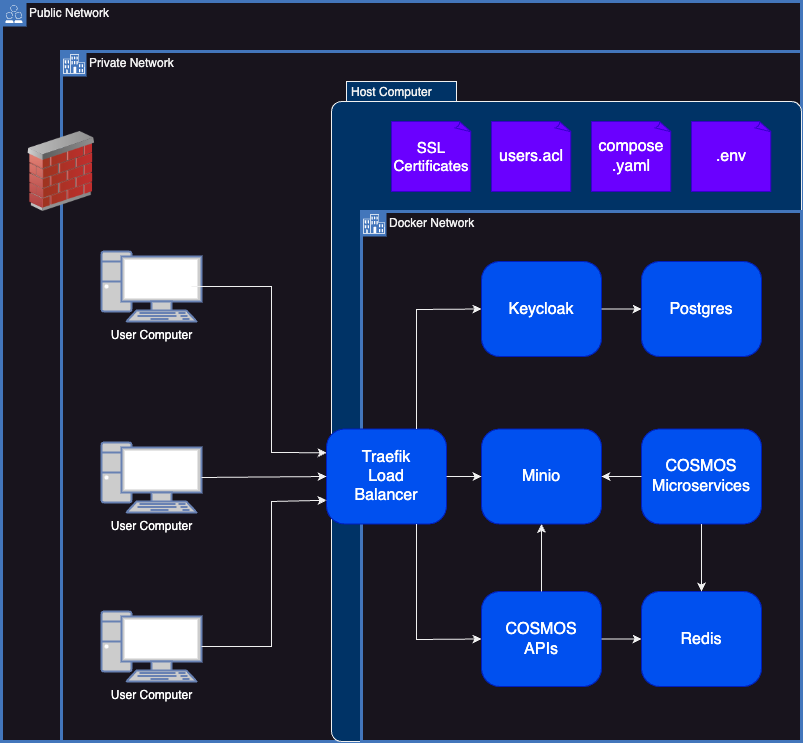

Docker Security Diagram

Understanding SSL, TLS, and Public Key Infrastructure (PKI)

Security on the internet is built on the technologies SSL and TLS. SSL (Secure Sockets Layer) was the original version but is now an outdated technology that is no longer used in favor of the more modern TLS (Transport Layer Security). However, the terms SSL and TLS are still used interchangeably in most conversations. Public Key Infrastructure (PKI) is what makes secure sockets like SSL and TLS work - and is built around certificates, certificate authorities, and public key encryption.

Public key encryption works with a set of two keys: the public key and the private key. A message encrypted with the public key can only be decrypted by the holder of the private key. This allows for secure messaging in one direction (from anyone with the public key to the single holder of the private key). Public keys can be safely shared "publicly" because they are only useful for creating an encrypted document that is useless to anyone without the private key. The private key should never be shared. Technically, the private key can also be used to encrypt messages that can be decrypted by the public key, but this is not useful since the public key is assumed to be available to everyone.

Certificate authorities issue certificates which contain a public key and additional information such as a domain name and are then digitally signed by the certificate authority. Verifying that the digital signature is valid (from a trusted certificate authority) is how your computer knows that if the public key works with a given domain name, then it can be trusted that the computer responding to that domain name is who it says it is. This can only be done if your computer has the information it needs to know if the certificate is valid. This information is included in the certificate authority trust store on your computer.

Have you ever seen "self signed certificate" type error messages? These error messages mean that your computer's certificate authority trust store wasn't able to verify the signature on a certificate. Generally this is because the certificate was issued by a private certificate authority (like an Active Directory Server or other company specific issuer). Computers by default include the information they need to check certificates from major public issuers of certificates (like Let's Encrypt) but don't have any information on private issuers unless you set it up.

Does this mean we can't use TLS without paying for certificates (or using free services like Let's Encrypt)? No, but it does mean if you use a private certificate authority, there is more work involved to make it work so that your computer will trust the certificates. This is unavoidable because computers are setup to not trust unknown certificate authorities for a good reason. If you trust all certificates then anyone can pretend to be any domain name on the internet. Side note: Domain Name Service (DNS) is still another layer of protection but TLS prevents someone who hacks DNS from also pretending to be valid domains.

Configure COSMOS for TLS

Obtain or Generate the Certificates

Most OpenC3 customers will be using certificates generated by a private certificate authority. If your certificate authority is controlled by your IT department please contact them to receive the public key/private key and full certificate chain (cacert.pem) file for your domain name. Note that you must have the full certificate chain. Often CAs are "chained" with a root CA and one or more intermediate CAs. You must have the certificates for each in your cacert.pem or it will not work.

If using a cloud service, like AWS Private CA, follow the service's directions to retrieve these three files.

If you are running COSMOS on an internet facing server (not recommended), then you can get free TLS certificates from Let's Encrypt. In this case the Traefik container will retrieve the certificates for you automatically (directions later on this page).

If you want to generate self-signed certificates, especially for an IP address rather than a domain name, we recommend using the mkcert utility.

  1. Install mkcert (brew install mkcert on MacOs)
  2. mkcert -install
  3. mkcert "your ip or domain name here"

This will generate YOURDOMAIN.pem (public key) and YOURDOMAIN-key.pem (private key)

Configuring cacert.pem for your certificate authority

If you are using certificates from a public certificate authority then you are good to go. We build all of our containers with a recent cacert.pem file that comes from the curl project and can be downloaded here: https://curl.se/ca/cacert.pem. This file contains the information needed to verify certificates from all of the major public certificate authorities. You can safely skip ahead to configuring COSMOS with the TLS public/private keys.

However, if your certificates are coming from a private certificate authority then you will need to configure the COSMOS containers with a cacert.pem file that includes the necessary information from your private certificate authority. Note that all non-public certificate authorities will need to be configured including services like Amazon Private CA. COSMOS WILL NOT WORK WITHOUT FOLLOWING THIS STEP.

It is recommended that you append your private certificate authority certificate to the end of the provided cacert.pem file. This allows COSMOS to work with the private CA and with the public internet over TLS.

In general this can be done like this:

cat myca.pem >> cacert.pem

If using mkcert to create self signed certificates, this can be done as follows:

cat "`mkcert -CAROOT`"/rootCA.pem >> cacert.pem

In all versions of COSMOS the base cacert.pem file can be found at the root of your COSMOS folder structure. This is the file you should modify/replace with your CA information.

Configure COSMOS for TLS when running in Docker Compose

Note: These instructions are only for Docker Compose (Both Core and Enterprise). If you are using Kubernetes with COSMOS Enterprise please see the Kubernetes instructions.

Follow earlier instructions to obtain your private key, public key, and to modify cacert.pem as necessary.

Enterprise Changes required for all TLS configurations

If running COSMOS Core skip to the next section.

  1. Edit compose.yaml
    1. Change this openc3-keycloak line: KC_HOSTNAME: "http://localhost:2900/auth"
    2. It should be changed to the final url with correct http/https, domain, port and end with /auth
  2. Edit .env
    1. Change the OPENC3_KEYCLOAK_EXTERNAL_URL and OPENC3_KEYCLOAK_URL lines so that both are set to the exact same url as set above in compose.yaml
  3. Edit openc3-enterprise-grafana/cosmos.yaml
    1. Change the cosmosUrl and keycloakUrl settings to the correct schema, domain, and port. Keep /auth if present.
  4. Edit openc3-enterprise-grafana/grafana.ini
    1. Change the root_url, auth_url, token_url, and api_url settings to the correct schema, domain, and port, leave any additional path information.

Using TLS and your own certificates

The following steps are written for the enterprise folder names. Remove "-enterprise" for COSMOS Core.

  1. Copy your public SSL certificate to ./openc3-enterprise-traefik/cert.crt
  2. Copy your private SSL certificate to ./openc3-enterprise-traefik/cert.key
  3. Edit compose.yaml
    1. Comment out this openc3-traefik line: - "./openc3-enterprise-traefik/traefik.yaml:/etc/traefik/traefik.yaml:z"
    2. Uncomment this openc3-traefik line: - "./openc3-enterprise-traefik/traefik-ssl.yaml:/etc/traefik/traefik.yaml"
    3. Uncomment this openc3-traefik line: - "./openc3-enterprise-traefik/cert.key:/etc/traefik/cert.key"
    4. Uncomment this openc3-traefik line: - "./openc3-enterprise-traefik/cert.crt:/etc/traefik/cert.crt"
    5. Modify this openc3-traefik line to remove the ip address and modify the first port number if desired (Note: leave the last :2900): - "127.0.0.1:2900:2900"
    6. Modify this openc3-traefik line to remove the ip address and modify the first port number if desired (Note: leave the last :2943): - "127.0.0.1:2943:2943"
  4. Edit ./openc3-enterprise-traefik/traefik-ssl.yaml
    1. Update line 22 to your domain: - main: "mydomain.com" # Update with your domain
  5. Start COSMOS
    1. On Linux/Mac: ./openc3.sh run
    2. On Windows: openc3.bat run
  6. Enterprise Only: After approximately 2 minutes, open a web browser to https://mydomain.com/auth/
    1. If you run "docker ps", you can watch until the openc3-cosmos-enterprise-init container completes, at which point the system should be fully configured and ready to use.
  7. Enterprise Only: IMPORTANT: You must configure Keycloak before accessing https://mydomain.com to get to the main COSMOS app and Grafana to work (you'll just see a solid color page until you do this) - Please follow the Keycloak documentation in our User's Manual

Using a global certificate from Let's Encrypt

Warning: These directions only work when exposing OpenC3 COSMOS to the internet. Make sure you understand the risks and have properly configured your server settings and firewall.

The following steps are written for the enterprise folder names. Remove "-enterprise" for COSMOS Core.

  1. Make sure that your public DNS settings are mapping your domain name to your server
  2. Edit compose.yaml
    1. Comment out this openc3-traefik line: - "./openc3-enterprise-traefik/traefik.yaml:/etc/traefik/traefik.yaml:z"
    2. Uncomment this openc3-traefik line: - "./openc3-enterprise-traefik/traefik-letsencrypt.yaml:/etc/traefik/traefik.yaml"
    3. Comment out this openc3-traefik line: - "127.0.0.1:2900:2900"
    4. Comment out this openc3-traefik line: - "127.0.0.1:2943:2943"
    5. Uncomment out this openc3-traefik line: - "80:2900"
    6. Uncomment out this openc3-traefik line: - "443:2943"
  3. Start COSMOS
    1. On Linux/Mac: ./openc3.sh run
    2. On Windows: openc3.bat run
  4. Enterprise Only: After approximately 2 minutes, open a web browser to https://mydomain.com/auth/
    1. If you run "docker ps", you can watch until the openc3-cosmos-enterprise-init container completes, at which point the system should be fully configured and ready to use.
  5. Enterprise Only: IMPORTANT: You must configure Keycloak before accessing https://mydomain.com to get to the main COSMOS app and Grafana to work (you'll just see a blank blue page until you do this) - Please follow the Keycloak documentation in our User's Manual

Configure COSMOS Enterprise for TLS when running in Kubernetes

Follow earlier instructions to obtain your private key, public key, and to modify cacert.pem as necessary.

In most Kubernetes environments, COSMOS will use a separate platform provided load balancer as the TLS termination point. Follow the directions for your specific Kubernetes environment to configure this load balancer with the TLS keys. Don't forget to update the cacert.pem file for COSMOS (and create the secret defined below) so that COSMOS can recognize the CA that issued your keys. As of COSMOS Enterprise 6.4, the create_secrets.sh script will create a secret called openc3-cacert to hold this file. This file is automatically mounted into each container that needs it at /devel/cacert.pem. Our helm charts also set the appropriate environment variables to use this file.

You will also need to correctly set several values in the helm chart values.yaml file to configure for TLS. The relevant values are described in the following table.

Value NameDescriptionDefault Value
global.cosmosdomainThe domain name that cosmos will be hosted atcosmos.openc3.com
sslThis flag should be set to true if you are using SSL/TLS even with an external load balancertrue
traefik.tlsCertsSet this flag to true if you are going to use Traefik as your SSL endpoint with given certsfalse
traefik.letsEncryptSet this flag to true if you want Traefik to acquire certs from Lets Encrypt. Will only work on the public internet.false
traefik.letsEncryptEmailEmail address given to Lets Encrypt when issuing certsfalse

Additionally the following secrets will need to be defined based on how you set the above values.

Secret NameDescription
openc3-cacertThis should always be set with the cacert.pem file used by COSMOS (even if just using public certificates). Be sure to append the full certificate chain from your private CA so that COSMOS can verify certificates successfully. Without doing this you will be guaranteed to receive SSL errors.
openc3-traefik-certPublic key provided to Traefik if traefik.tlsCerts is true. Should be created with the filename as cert.crt. ie. kubectl create secret generic openc3-traefik-cert --from-file=cert.crt=/Users/ryanmelt/192.168.1.109.pem
openc3-traefik-keyPrivate key provided to Traefik if traefik.tlsCerts is true. Should be created with the filename as cert.key. ie. kubectl create secret generic openc3-traefik-cert --from-file=cert.key=/Users/ryanmelt/192.168.1.109-key.pem
